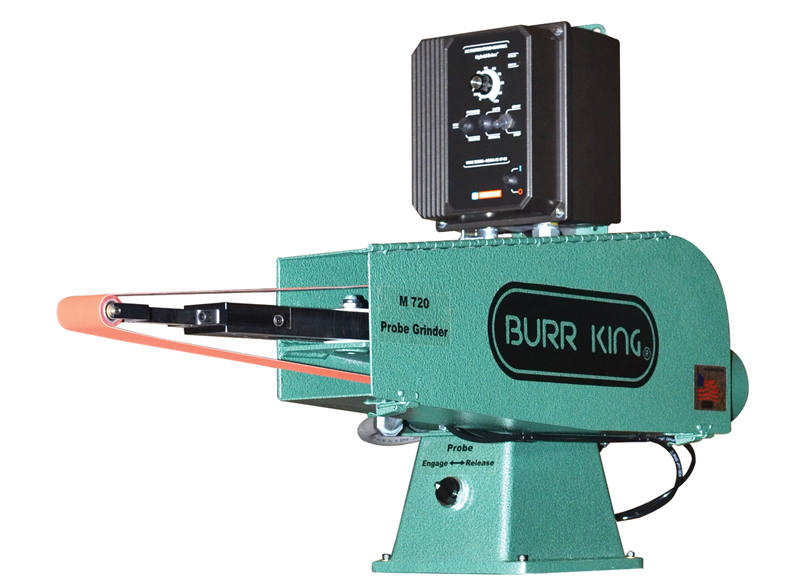

Burr King Model 720
 |
|
 |
 |
| The Model 720 presents a unique up front, two wheel, rear drive configuration that quickly accepts contact wheel finishing diameters from 3/8 inches to 3 inches in diameter. The Model 720 is equipped with a reliable and fully adjustable air pressure, belt tension control system. Using 1/2 inch to 2 inch belt width. The Model 720 72 inch belt track delivers long abrasive life coupled with excellent utility. Available in single or vari speed. |
| Model 720 Probe Belt Grinder Delivers more utility to Burr King customers! - Reach into deep cavities. - Finish the I.D. of tubing. - Work exotic materials with multiple belt speeds from 500 to 5500 SFPM. - Excellent for turbine blades. - Delicately blend finishes. - Rough away material - Finish inside diameters |
| Standard Features: - 72" belt track. - 1/2 to 2 inch belt widths. - 1 inch diameter x 2 inch wide contact wheel. - 5500 SFPM - 1.5 horse power in popular voltage and phase options. - Air tension control abrasive belt. - Pressure regulation and adjustment. - Accepts all Burr King 1400 series nose attachments (choice of one with machine). - Heavy fabricated steel frame. - Out front grinding point with up to 14 inches probe capability (diameter dependent). - Integrated dust collection shroud with 3 inch outlet. - Belt guard with belt access door. - Bench or pedestal mount. - Foot print approximately 20W x 36D x 36H. |
| Optional Features: - Variable speed from 500 to 5200 in 1 phase and 3 phase options. - Magnetic starters. - 2 horse power motors. - Mounting pedestal. - Various nose attachments with contact wheels from 3/8 to 3 inches in diameter with 1/2, 1, and 2 inch widths |
| Pedestal is optional, not included. |
| *Includes magnetic starter (NEMA 12) and controls without power cord. |
| Call for a demo, This machine is made in the USA |
Speed Fixed |
Speed Variable |
Horse Power |
Volt/Phase |
SKU |
NO |
550-5000 SFPM |
1.5 |
120/1 |
16110 |
NO |
550-5500SFPM |
1.5 |
220/1 |
16210 |
5500 SFPM |
NO |
1.5 |
120/1 |
16300 |
5500 SFPM |
NO |
1.5 |
220/1 |
16400 |
5500 SFPM |
NO |
1.5 |
220/3 |
16503 |
5500 SFPM |
NO |
1.5 |
440/3 |
16603 |
