Burr King Model 960-400
 |
| Burr King's family of two wheel grinders provides vigorous contact wheel, workrest, and platen grinding in a frame design that pivots to ideal work positions. These machines are frequently selected as tool post grinders, roll grinders, and for fixturing into centerless grinding applications. |
| Available in easily adjusted variable speed and aggressive single speed, 2-1/2" x 60" or 4" x 60" belt models. |

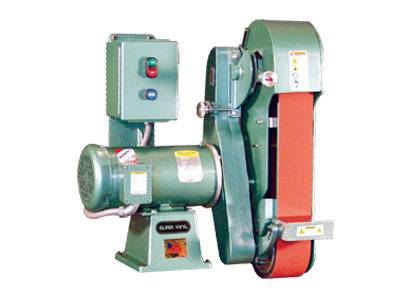

| Model 960-400 shown with optional magnetic starter |
| Model 960-400 has a standard 60" belt up to 4" wide and can be bench or pedestal mounted |
| - Contact wheel, platen and work support grinding. - Adjustable belt tension. - Positive belt tracking. - Quick belt change. - Up to 8000 SFPM belt speed standard. - Compact footprint friendly to "cell" manufacturing - Adapts for "tool post" or "on center" grinding. - Adapts for robot mounts. - Variable speed 120/220-1 PH, and 220/440-3 PH options. - Precision machined cast aluminum frame. - OSHA compliant, enclosed guarding |
| Pedestal is optional, not included. |
| *Includes magnetic starter (NEMA 12) and controls without power cord. |
| Call for a demo, This machine is made in the USA |
Speed Fixed |
Speed Variable |
Horse Power |
Volt/Phase |
SKU |
6500 SFPM |
NO |
2 |
220/1 |
95030 |
6500 SFPM |
NO |
3 |
220/3 |
95103 |
3150 SFPM |
NO |
3 |
220/3 |
95203 |
3150 SFPM |
NO |
3 |
220/3 |
96103 |
3150 SFPM |
NO |
3 |
440/3 |
96203 |
NO |
660-6600 SFPM |
1.5 |
120/1 |
97110 |
NO |
660-6600 SFPM |
1.5 |
220/1 |
97210 |
NO |
660-6600 SFPM |
1.5 |
220/1 |
97310 |
NO |
660-6600 SFPM |
2 |
220/3 |
98103 |
NO |
660-6600 SFPM |
2 |
440/3 |
98203 |
