Ramco Wood Dry Wide Belt Sanders
open side sander

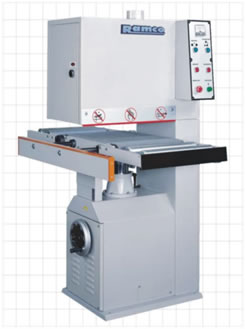

DW-16P BELT SANDER

• Limit switch safety stops are located on either side of the sanding belt to stop the belt sander if the sanding belt mistracks or breaks.
• Conveniently located load meter provided for continuous monitoring of the main motor during sander operation.
• Side access door for quick sanding belt change.
• Side extension bar provides firm support for wider material.
• Sanding belt tension and oscillation are pneumatically controlled.
• Infeed and outfeed roller conveyor extensions are provided for better part support for longer pieces.

Standard Equipment:
• Emergency rail stop
• Emergency stop button
• Dust hood
• 17" x 54" sanding belt Combination Head: Pneumatic sanding belt Oscillating:

MODEL:	DW-16P BELT SANDER
Working width	16"
Working thickness	5"
Minimum board length	13 3/4"
Head configuration	Combination Head
Main motor	5HP 1HP
Feed motor	1/4HP 1HP
Sanding belt size	17" x 54"
Sanding belt speed	2200 SFPM
Compressed air requirements @ 5 atm (CFM)	4 CFM
Exhaust Volume required (CFM)	800 CFM
Overall dimensions	38" x 38" x 72"
NW / GW	880 lbs / 990 lbs
